S104 DOX Differential O2 Analyzer


Qubit System's S104 Differential O2 Analyzer (DOX) is the world's only Patented Differential Oxygen Analyzer with a resolution of ±1ppm O2 against a background of air. With the S104 DOX, researchers can measure real-time rates of respiratory oxygen consumption from tiny insects and photosynthetic oxygen production from a single intact leaf. The S104 Differential O2 Analyzer has the greatest dynamic range of any gas analyzer on the market and on a lower resolution setting it can measure O2 exchange in larger animals, even Human.

When used with a CO2 Analyzer (S157) in an open gas exchange system, measurements of Gas Exchange Quotient allow non-invasive studies of respiratory metabolite determination and analyses of reductant flow in anabolic and catabolic reactions. S104 DOX O2 Analyzer can be employed in human metabolic studies using the room, pod or hood calorimetry approach.


  1. Features:
  2. ±1ppm Oxygen Resolution against Air (that's 0.0001%)!
  3. Widest Dynamic Range of any Oxygen Analyzer.
  4. Easy calibration without special calibration gases.
  5. Separate Analog Signals for reference and sample pO2.
  6. Analog Signals for Differential pO2, Absolute Pressure, Differential Pressure, Sample and Reference Cell Temperature, Instrument Temperature.
  1. Applications:
  2. Single Leaf Photosynthetic O2 Exchange
  3. Insect Respiratory O2 Consumption
  4. Small and Large Animal Respirometry
  5. Soil Respiration
  6. Leaf Dark Respiration Rate
  7. Human Metabolic Studies (Room Calorimetry)
  1. Specifications:
  2. Power Supply: 12V 115/220 VAC
  3. Oxygen Sensor Life: 3 to 5 Years (Easily Replaceable)
  4. Analog Output: 0 to 5V, recommend using 16-Bit Analog to Digital Converter
  5. Absolute Signal Range: Reference and Sample 0 to 100% O2
  6. Absolute Signal Resolution: 0.001%O2
  7. Absolute Signal Accuracy: ±0.002% O2
  8. Absolute Signal Response Time: T90 = 20 Seconds, Partial Pressure Measurement
  9. Differential Oxygen Signal Range: 1000 to 10000 ppmO2 (user defined)
  10. Differential Oxygen Signal Resolution: 1ppmO2
  11. Differential Oxygen Signal Accuracy: ±2.5 ppmO2
  12. Differential Oxygen Signal Response Time: T90 = 20 seconds, Partial Pressure Measurement
  13. Absolute Pressure Signal Range: 15 to 115kPa
  14. Absolute Pressure Signal Resolution: 0.01kPa
  15. Absolute Pressure Signal Noise <0.01kPa
  16. Absolute Pressure Signal Accuracy: 1% of Full Scale
  17. Differential Pressure Signal Range is: ±620Pa
  18. Differential Pressure Signal Resolution: 1Pa
  19. Differential Pressure Signal Accuracy: 1% of Full Scale
  20. Reference and Sample Air Temperature Signals Range: 0 to 50°C
  21. Reference and Sample Air Temperature Signals Resolution: 0.01°C
  22. Reference and Sample Air Temperature Signals Accuracy: ±0.1°C
  23. Oven Temperature Signal Range: 10 to 50°C
  24. Oven Temperature Signal Resolution: 0.01°C
  25. Oven Temperature Signal Accuracy: ±0.1°C

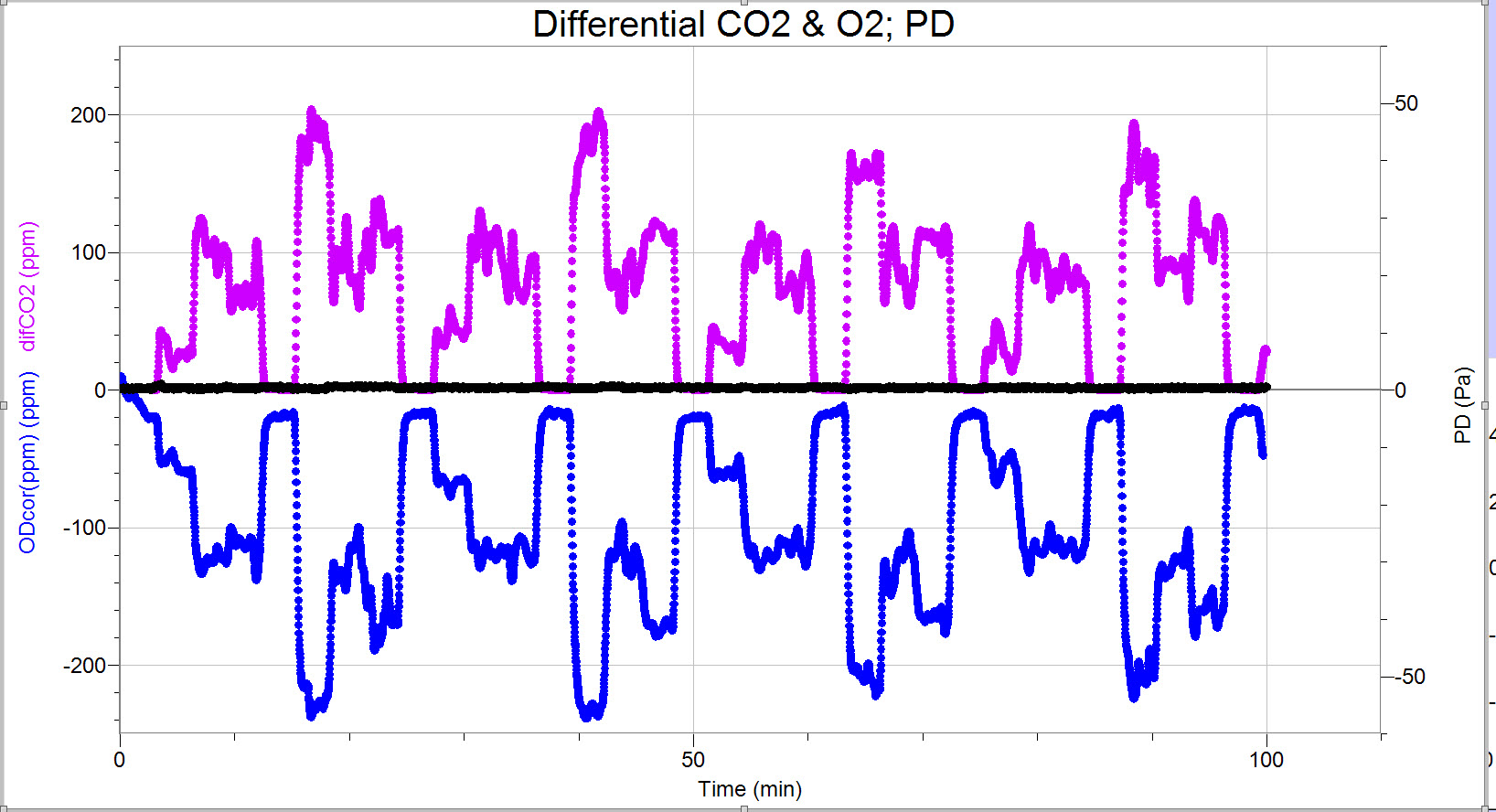

  1. Sample O2 and CO2 Data from Mealworms:


All Specifications are subject to change without a Prior Notice
