AFL - 160 Digital / Dry Contact Closure Fiber Optic Link

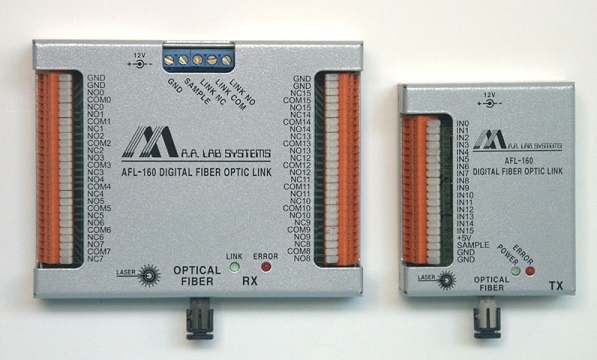

Actual Size: TX: 75 * 60 * 23mm, RX: 115 * 90 * 23mm (Box Only)

  1. AFL - 160 Digital/Dry Contact Closure Fiber Optic Link is the right choice when you need to:
  2. Transfer 16 Digital Control Signals from a Noisy Environment
  3. Isolate Digital Signal from High Voltage Sources
  4. Control Systems over a Long Distance
  5. Reduce Wiring Costs
  6. Get Rid of Interferences and Spikes
  7. Get Fast and Accurate Response to your Control Signals

The AFL - 160 Digital / Dry Contact Fiber Optic Link can Transmit 16 Contact Closures or 16 TTL Signals over a Long Range at a 93kHz Update Speed. The AFL - 160 was primarily designed for Industrial and Control Applications. The product is sampling the 16 Digital TTL Input at a rate of 93kHz Simultaneously and Transmit all Control Signals to 16 Digital Outputs. Those Outputs are available as 16 Form C Relay Contacts or as 16 TTL Compatible Outputs (0 - 5V or 0 - 3.3V). A “LINK” Led and Relay Contacts Enables the user to know if the Link was Disconnected and take any Precautions needed to halt the System.

Input Sampling and Output Updates may be Synchronized to External Circuits or Controllers by using the “SAMPLE” Pin at the Transmitter or at the Receiver.

  1. The AFL - 160 Consists of the Following Components:
  2. A Digital Input Fiber Optic Transmitter: AFL - 160 / TX, with TTL Compatible Inputs.
  3. A Digital Fiber Optic Receiver: AFL - 160 / RX. This Unit can be configured with Dry Contacts (1 Change-over per TTL input) or with TTL Outputs.
  4. Upto 3km of Multi-mode Glass Fiber or 50km of Single-mode Fiber (optional).
  5. Optical Budget with Single-mode Transceivers: 30dB
  6. 2 Power Supplies of 12V: One for each side.
    Can be modified to 24V supplies + DIN Rail Holder for DIN Rail Mounting.

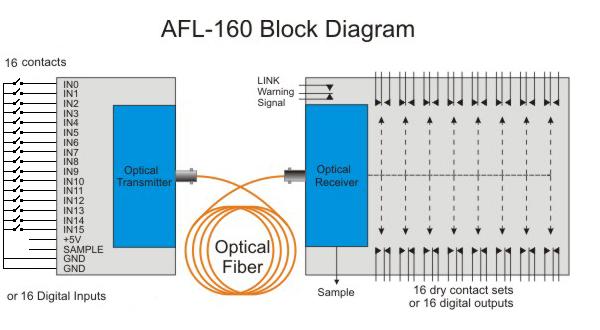

The Link is Connected between: TTL Inputs at the Transmitter & Relay Contact Outputs at the Receiver

  1. Features:
  2. Excellent Signal Isolation. Prevents Ground Loops and Computer Spikes.
  3. Very Fast Response: upto 100µSec at TTL version, 1 - 2mSec @ Contact Closure Version.
  4. Transfers Digital Control Signals to distances of upto 1.6km (50km with Single-mode Transceivers).
  5. Input Signal: 0 - 5V @ DC - 20kHz.
  6. 2 Versions Available: TTL Outputs or Contact Closures.
  7. Very Small Size: TX: 75 * 60 * 23mm, RX: 115 * 90 * 23mm
  8. Low Cost
  9. Relay ON / Off Time: Hold: 2mSec, Release: 0.9mSec (Average)
  10. TTL Output On / Off Time: 50nSec (Rise or Fall Time)
  11. TTL Output Update Rate: 93kHz.
  12. Form C Contacts: Can be connected as Normally Open or Normally Closed.
  1. Advantages:
  2. Low Noise Transfer of Digital Data, particularly Beneficial in Electrically Noisy Environments and for Transmission over Long Distances.
  3. For Medical Tests: The Patient is Isolated from Data Acquisition System and from any Other High Voltage Source.
  4. Optional Single-mode Transmitter and Receiver allows 30dB Optical Budget for Longer Range.
  5. Isolates delicate Test Equipment from Computer generated Noise and Spikes: Noises from Computer do not return into your System.
  6. Eliminates the formation of “Ground Loops” (when Two Instruments are connected to Separate Power Lines or have a difference between their Ground Voltage Potentials).
  7. Total Protection of Signal Processor’s Input Stage from Lightning, High Voltage Spikes, etc.
  8. Replaces bulky multi-wire cables with Compact Fiber Optic Cable - especially important when rewiring existing ducts.
  1. Technical Specifications

Input Range:

0 - 5V related to TX Common Ground

Output Contacts:

Normally Open, Common, Normally Closed
Each Relay is Isolated from the Others

Contact Ratings:

  1. 30V DC @ 1A
  2. 125V AC @ 0.5A
  3. 60V DC @ 0.3A
  4. Form C Contacts
    (Common, Normally Open, Normally Closed)

Frequency Response:

DC to 20kHz

Timing Jitter:

10.5µSec Max.

Supply Voltage:

12V Regulated, Floating Power Supply

Optical Fiber:

Glass, 62.5/125 micron dia. Standard (upto 3km)
ST Connector Standard, SMA Optional

Transmission Range:

Upto 1.6km Standard; 3km Optional

Optical budget with Single-mode Transceivers:


5V Output Terminal Current:

Upto 100 mA

Relay ON/Off Time:

Hold: 2mSec, Release: 0.9mSec (Average)

Voltage Isolation

Input to Output:

Infinite Voltage Isolation

Input / Output to Mains:

800V Standard, upto 2,500V Optional

Battery Operated:

Infinite Voltage

Relay to Relay Isolation Voltage:

800V Max.

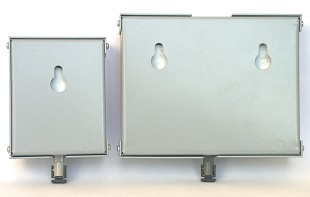

Wall Mounting

DIN Rail Holders and
24V DC Converters Available

  1. Ordering Information:
  2. The AFL - 160 may be ordered with Single-mode or Multi-mode Receivers and Transmitters. Single-mode Transmitters work in a Different Wavelength than Multi-mode Transmitters and they cannot be combined!
  3. Each Side needs a Separate Power Supply or Battery. All Units, on the Same Side, which Share the Same Common Ground, may Use the Same Power Supply.
  4. A stabilized Power Supply may Supply Power for upto 5 (optionally 10) Receivers or Transmitters (with 16 I/O Lines each).
  1. Power Supplies:

AFL - 160 - 03: Power Supply for 3 Links
(For one side - 3 Tx or 3 Rx or Mixed)

AFL - 160 - 10: Power Supply for Powering upto 10 Units (For One Side, Rx or Tx)
Linear Power Supplies are also available

AFL - 160 - BAT:
(Battery Operated Power Supply)

Can run upto 4 Rx or Tx Units for upto 10 Hours. Includes a 12V / 6.5AH Battery, Charger + Cables. Other Batteries available per request. (Available in OEM version)

Battery Operated Power Supply
Housed in a Metal Case

All Specifications are subject to change without a Prior Notice
