Fiber Optic Links

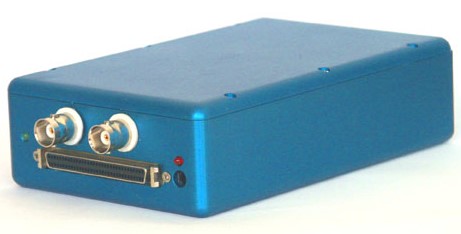

AFL - 8500 High Speed Analog / Digital Fiber Optic Link


The AFL - 8500 is a High Speed, High Bandwidth Fiber Optic Link. The AFL - 8500 System can Transfer upto 2 Analog Signals + 32 Digital Signals to Each Direction. The System is using a 1.25GHz Optical Link for Ranges of upto 40km. Each Signal is Sampled at a Very High Sampling Rate at 16 bit Resolution providing the User a Tool for Transmitting Analog and Digital Signals with High Accuracy and a Very Low Delay.

All of the Analog and Digital Signals are Sampled Simultaneously inside the AFL - 8500 High Speed Fiber Optic Link at a Minimum Sampling Rate of 10MHz. Digital Units (With No Analog I/O) can Sample at upto 60MHz per Channel.

AFL 8500 Model

Analog Channels

Digital I/O Lines

Fiber Range

Analog Bandwidth

Uni/Bi-Directional

Sampling Rate

Fiber Type

Comments

AFL 8500
A: 2
D: 32

2 + 2

32 + 32

<40km

DC-3MHz

BI

20MHz

SM

OBSOLETE

AFL 8500
A: 1
D: 32

1 + 1

32 + 32

<40km

DC-6MHz

BI

40MHz

SM

OBSOLETE

AFL 8500
A: 16
D: 32

16 + 16

32 + 32

<40Km.

DC-80kHz

BI

600kHz

SM

OBSOLETE

AFL 8500
D: 32

N/A

32 + 32

<40km

N/A

BI

30MHz

SM

TTL I/O

AFL 8500
D: 16

N/A

16 + 16

<40km

N/A

BI

40MHz

SM

TTL I/O

AFL 8500
D: 8

N/A

8 + 8

<40km

N/A

BI

60MHz

SM

TTL I/O

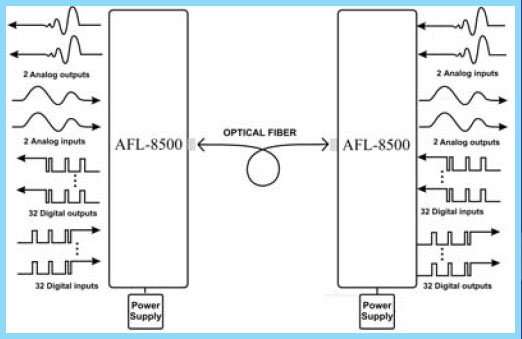

  1. Block Diagram:
  1. Specifications:
  2. Analog Inputs are Not Available Any More
  3. Sampling Method: True Simultaneous Sampling
  4. Digital I/O Signals may be Combined with RS-232 / RS-485 Drivers or High Current Relay (Dry Contacts)
  5. Optical Fiber: Single-mode, 9/125 Micron (SMF28 Compatible)
  6. Range: 10km Standard, upto 60km Optional
  7. Power Supply: 10 - 14V @ 1.5A Max.
  8. The AFL - 8500 System is Relatively Small. It was designed for Applications where Small Space and Low Weight are Essential.

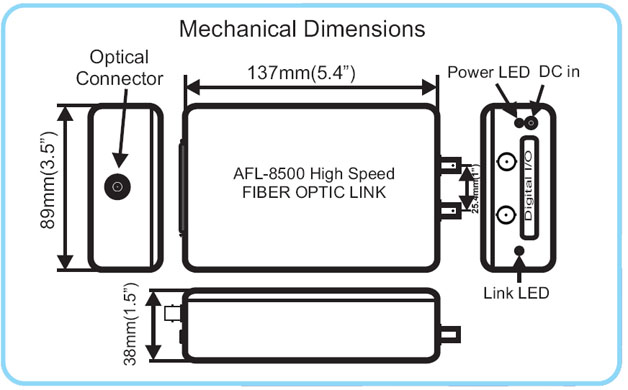

  1. Mechanical Dimensions:

  1. Digital I/O Board:
  1. Relay / RS-232 I/O Board:


All Specifications are subject to change without a Prior Notice
