Electrophysiology Sensors:

Q-S222 GSR Sensor

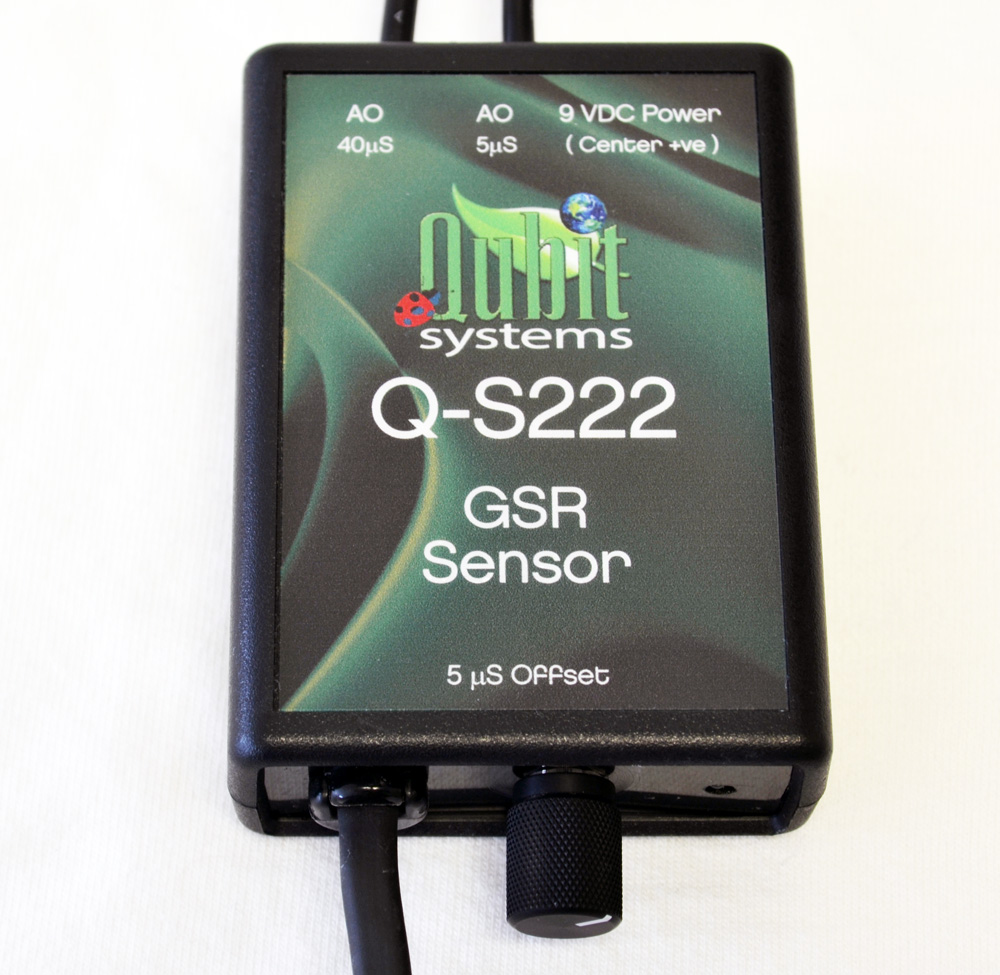

The Q-S222 Galvanic Skin Response (GSR) Sensor measures the psycho-galvanic reflex. This reflex generates a change in skin conductivity during periods of stress, excitement or shock. The changes in skin conductance are measured by the Q-S222 GSR Sensor in micro Semens (µS). The sensor has 2 Analog Outputs, a High Range (40µS) and a Low Range (5µS). The 5µS output can be offset with a Potentiometer to permit High Sensitivity Measurements over the entire range from 0 to 40µS.

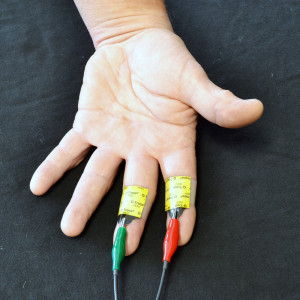

The Q-S222 GSR Sensor monitors skin conductivity between two disposable tab electrodes attached to 2 fingers of one hand. While the subject is at rest, a steady background signal will be monitored by C901 LoggerPro software on the computer screen. The subject may then be stimulated in different ways and the degree of stimulation measured graphically.

The GSR Sensor can be used in bio-feedback studies in which the subject learns to control emotional state voluntarily by using relaxation techniques. This is often done with closed eyes. The voltage signal declines as skin conductivity decreases with relaxation. The sensor must be used with C610 LabQuest Mini Data Interface and C901 Logger Pro Sotware. Other Data Acquisitions Interface that take 0-5V Signal can also be used.

As well as relaxation studies, the S220 GSR Sensor can also be used to determine the types of stimuli that excite various subjects. For example, the stimulatory or relaxing effect of different colors can be assessed, as well as the effects of various patterns and images.

1. Features:
2. Simple and easy to use Electrode Based System for Measurements of Skin Conductivity
3. Calibrated Output in Software (in µS)
4. Two Sensitivity Ranges Available: 5µS and 40µS
5. Optional Data Interface and Software Available
6. Manual with Suggested Experiments Included

1. Applications:
2. Human Electrophysiology Teaching and Research
3. Changes in Skin Conductivity During various Physical Stimuli
4. Changes in Skin Conductivity to Mental Stimuli (Lie Detector Studies)

1. Specifications:
2. Power Supply: 9V DC, 560mA
3. Units: (µS) USiemens
4. Resolution:
1. 40µS Range: 0.0097µS
2. 5µS Range: 0.0012µS
5. Accuracy: 0.5% for Full Scale, or Better
6. Range: 40µS and 5µS
7. Offset: 5µS Range can be offset from 0 to 40µS
8. Gain: System Gain is 1980 and 15840 for 40µS and 5µS
9. Cut-off Frequency High: 7.2Hz
10. Patient Isolation: 1500Vrms
11. Size (H × W × L) (cm): 2.8 × 6.2 × 9.2
12. Weight: 200gm
13. Materials: Plastic (Black)
14. Warranty: 1 Year

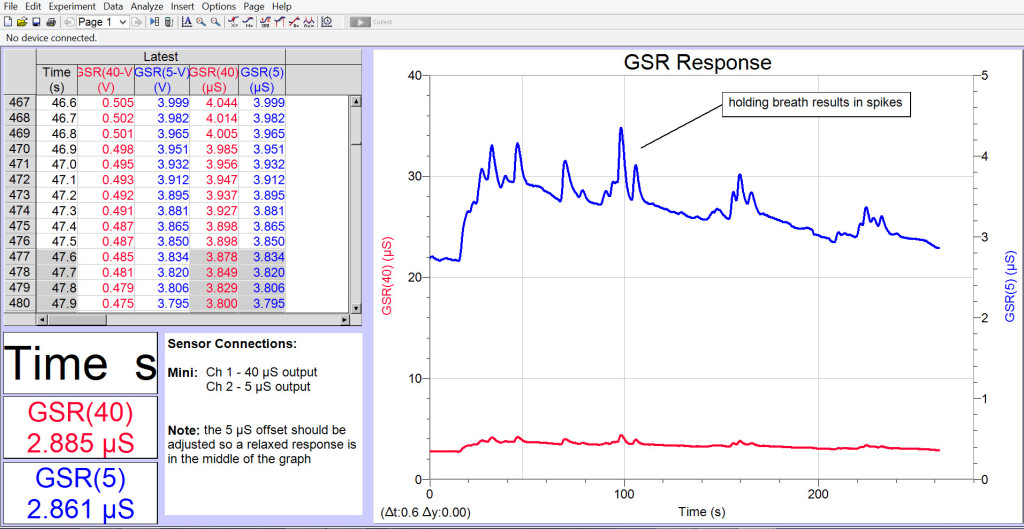

1. Software - Sample Data:
