Q-S151 CO₂ Analyzer 0-2000ppm

Q-S151 Infrared CO₂ Analyzer is a Non-Dispersive Infrared CO₂ Analyzer that measures CO₂ in 0 to 2000ppm range with 1ppm Resolution. Dependable Technology, Rugged and Modular for easy fit in our Q-Box Packages or for standalone use. Q-S151 is ideal for CO₂ Exchange Measurements with Leaves, Insects, Small Animals or Organisms with a Low Metabolic Rate. It is also excellent for measuring Soil Respiratory activity in-situ in the field and in the lab.

This CO₂ Analyzer may be used in a flow-through system configuration for instantaneous and continuous measurements of CO₂ production or consumption. It can also be used in a closed system mode for measurements at extremely Low Activity Levels.

This Q-S151 CO₂ Analyzer may be set up for use in the injection mode where small samples of CO₂ Gas are Injected into a carrier gas flowing past the CO₂ sensor for measurements of CO₂ levels in the headspace of collected samples.

The Q-S151 is a key component of Qubit System's Carbon Dioxide Control System for regulating pCO₂ in growth cabinet or rooms. Contact us for more information on these systems.

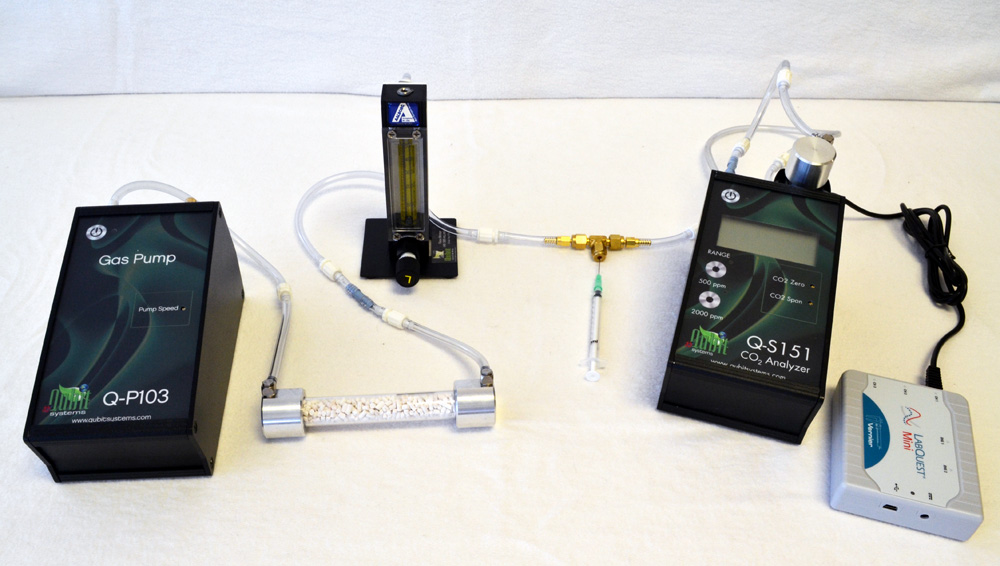

1. CO₂ Injection System for Measurements of Headspace Gas Samples:

1. Features:
2. Switchable Ranges of 0-500ppm and 0-2000ppm CO₂
3. 1ppm CO₂ Resolution on Digital Display
4. Non-dispersive Infrared Technology
5. Modulated Infrared Light Source = No Moving Parts
6. 0-5V Analog Output at both Range Settings
7. Optional Battery Pack for Field Use
8. Compact and Portable

1. Applications:
2. Photosynthetic Measurements
3. Respiration of Roots and Soil Samples
4. Respirometry of Insects and Other Invertebrates
5. Head Space Analysis of Cell Cultures
6. Atmospheric Monitoring and Control

1. Specifications:
2. Operating Principle: Non-dispersive Infrared
3. Gas Sampling Mode: Flowing Gas Stream, Sealed Chamber
4. Maximum Gas Flow Rate: 650mL/min
5. Measurement Range (LCD Display): 0-1999ppm
6. Analog Output, Low Sensitivity: 0-2000ppm
7. Analog Output, High Sensitivity: 0-500ppm
8. Accuracy: ±1ppm
9. Repeatability (at Stable atm press and temp): Better than ±1ppm
10. Maximum Drift (per Year): ±100ppm
11. Response Time (@250mL/min to 95% of Final Value): 25sec
12. Warm-up Time (@22°C): 5 min
13. Output (Linear) for Low Sensitivity Setting: 0-5V DC for 0-2000ppm
14. Output (Linear) for High Sensitivity Setting: 0-5V DC for 0-500ppm
15. Calibration Adjustments: Zero and Span
16. Operating Temperature Range: 0 to 50°C
17. Storage Temperature Range: -40 to 70°C
18. Operating Pressure Range: ±1.5% Local Mean Pressure
19. Humidity Range: 5 to 95% RH, Non-condensing (recommend drying gas stream)
20. Pressure Dependence: +0.19% reading per mm Hg
21. Power Requirements: 12V DC via 120V AC 60 Hz Adapter
22. Current Requirements: 125mA Average, 450mA Peak
23. Dimensions (H × W × D) (cm): 5.5 to 9.5 × 9.5 × 17
24. Weight: 1kg
25. Warranty: 1 Year Limited
