Q-P651 Gas Pump, 3LPM

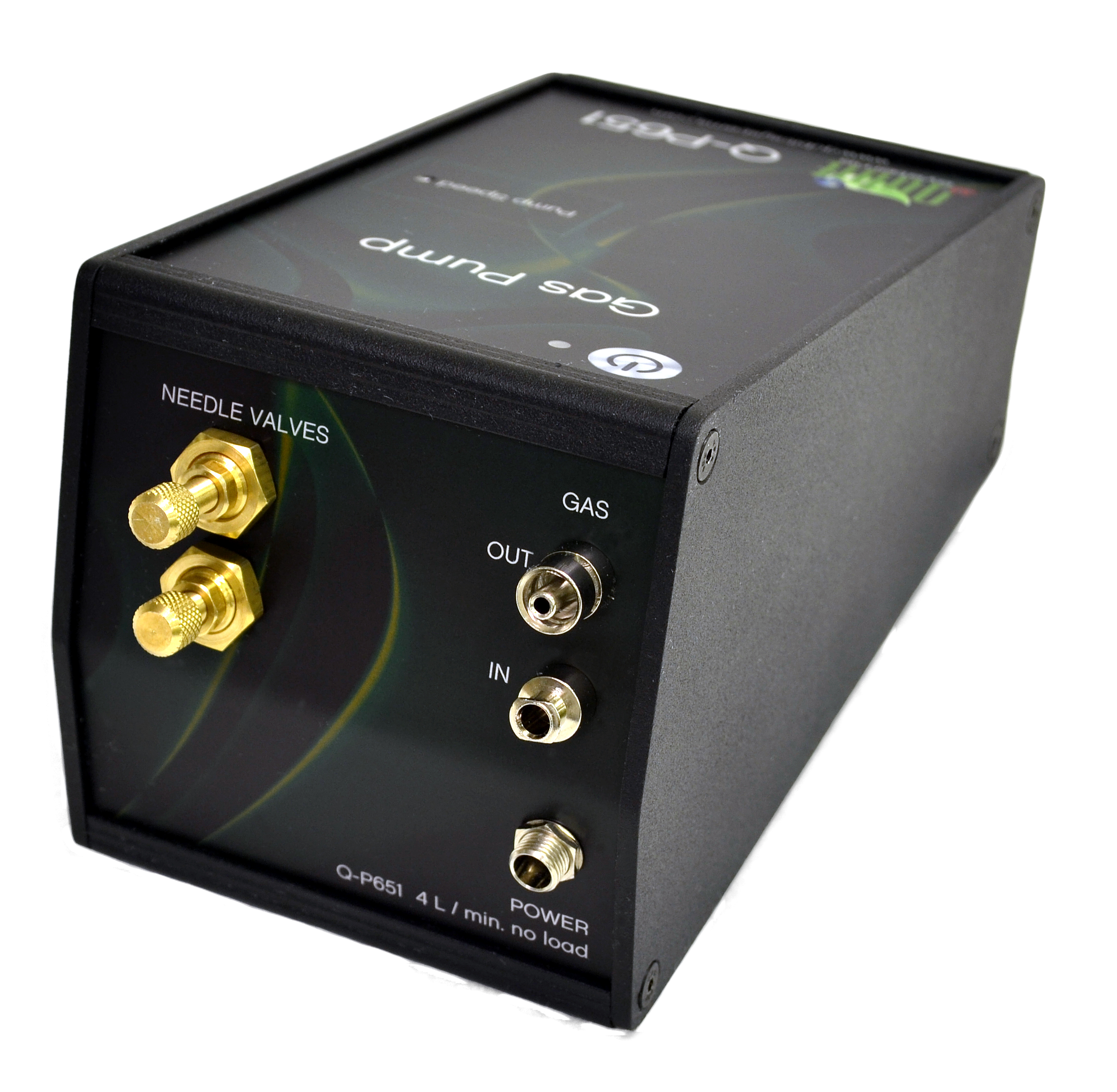

The Q-P651 Gas Pump is a diaphragm style pump used to supply gas to a Gas Exchange System. The maximum unrestricted gas flow generated by the pump is approximately 3 LPM (at ˜400mA). A potentiometer allows accurate control of pump speed from 50 to 100% output with reduced risk of accidental alterations. Flow rate of the gas is adjusted via two needle valves on the back of the pump. Rubber feet and internal rubber pump mount ensure quiet operation.

The Q-P651 Gas Pump has been designed to work with Q-Box Packages but it can also be used in a stand-alone mode. Input and Output Gas Ports are Luer-Lock style for easy attachment to any Gas Exchange System. The Q-P651 Gas Pump contains internal outlet laminar dampening volume which dampens pressure pulses for use with laminar Mass flow Sensors.

1. Features:
2. Simple Operation
3. Two Valve Adjustments of “in” and “out” Gas Flow
4. 3-4 LPM Max Flow (No Load)

1. Applications:
2. Delivery of Gas to various Analyzers
3. Delivery of Gas to Algal Cultures
4. Delivery of Gas in Aquaculture
5. Essential Component of Q-Box Packages

1. Specifications:
2. Power Supply: 12V DC, 315mA
3. Max. Pressure: 15 PSIG
4. Max. Vacuum: 14" HG
5. Max. Gas Flow (No Load): 3-4 LPM
6. Dimensions (H x W x D) (cm): 5.5 to 9.5 × 9.5 × 17
7. Weight: 900gms
8. Warranty: 1 Year
