Packages for Teaching & Research in the Biological Sciences:


OX1LP Dissolved Oxygen Package



The OX1LP Dissolved Oxygen Packages are based on the use Polarographic Dissolved Oxygen Electrodes and may be used to measure Photosynthesis and/or Respiration in the Aqueous Phase, using Suspensions of Plants, Animals and Organelles (chloroplasts and mitochondria). It may also be used to monitor chemical and biochemical reactions that either produce or consume O2 in the Aqueous Phase. The Dissolved Oxygen Package comes complete with instruments, accessories, software and interface.

The OX1LP Dissolved Oxygen Packages are available with DO Electrodes of different volumes from 100µl (flow-through) to 50ml. The O2 electrode within the water-jacketed cuvette may be used for measurements of O2 consumption (or production) by biological samples or enzymatic reactions. Calibration is a simple 2-point process, and all the required accessories for calibration are supplied as part of the package.

The Dissolved Oxygen Package provides excellent accuracy and a resolution of 0.03% O2 (where air saturated water: 100%). Dissolved O2 values may be expressed in any desired units (mg/L; % Dissolved O2; ppm etc.) based on a simple calibration procedure. The water jacket allows calibrations and experiments to be carried out at the same temperature, or a simple temperature correction can be made in software for measurements made at different temperatures.

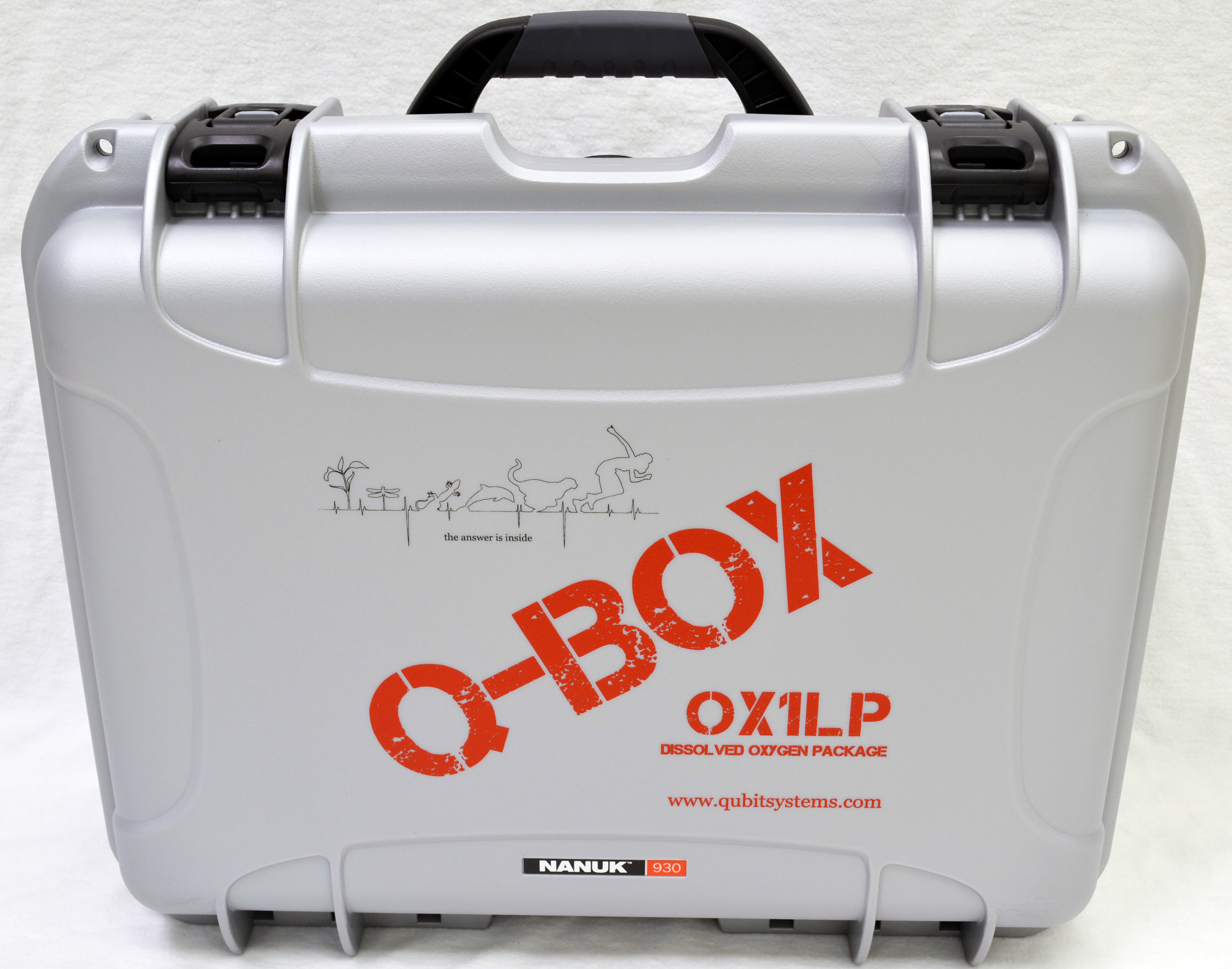

OX1LP Dissolved Oxygen Packages may be provided with Q-Box Rugged Case for Easy Transport and Storage

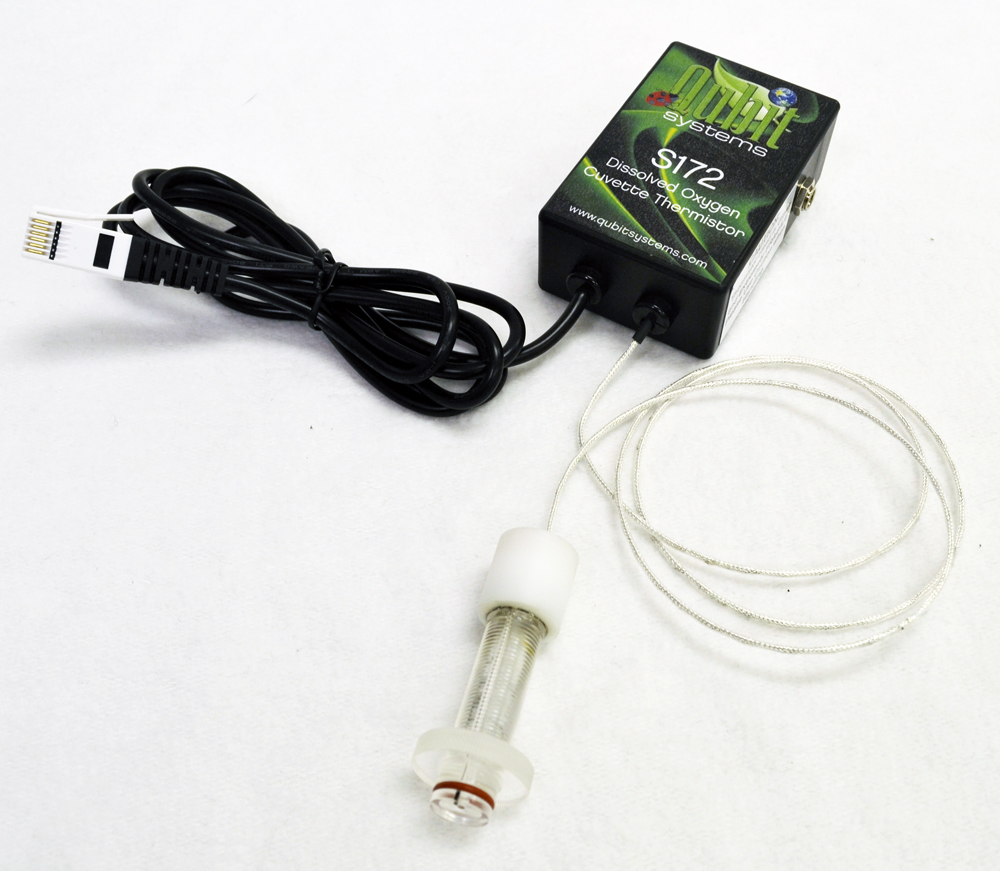

An Optional S172 Thermistor may be provided for measurements of Temp. inside zthe DO Electrode Cuvette
  1. The Following OX1LP Packages are Available depending on the Volume of the DO Electrode required:
  2. OX1LP-1 (1ml perspex)
  3. OX1LP-2.5 (2.5ml glass or perspex)
  4. OX1LP-4 (4ml perspex)
  5. OX1LP-6 (6ml glass)
  6. OX1LP-30 (30ml perspex)
  7. OX1LP-50 (50ml perspex or glass)

    8. Kindly contact us to check Dissolved Oxygen Electrodes provided by us

An Optional S172 Thermister may be provided for measurements of Temp. inside the DO Electrode Cuvette
  1. Applications:
  2. Algal Photosynthesis and Respiration
  3. Bacterial Respiration
  4. Respiration of Microorganisms
  5. Respiration of Small Aquatic Animals
  6. Aquatic Insects and Larvae Respiration
  7. Mitochondrial Respiration
  8. Chloroplast O2 Production
  9. Cell Suspension Respiration
  10. Plant Cells Suspension Photosynthesis
  1. Components:
  2. Dissolved Oxygen Cuvette Electrode (1, 2.5, 4, 6, 30, 50mL)
  3. A231 Cuvette Electrode Amplifier

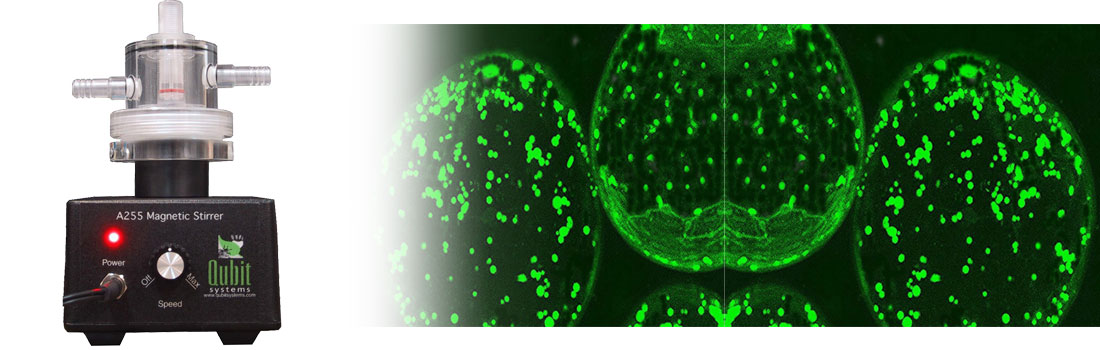

  4. A255 Magnetic Stirrer
  5. A135 Stir Bar (2) and O-Ring (2)
  6. A131 KCl Filling Solution
  7. A136 Membrane Material and Filter Paper
  8. 10 ft Excelon Tubing for the Water Jacket
  9. C610 LabQuest Mini Data Interface
  10. C901 Logger Pro Software
  11. C404 Customized Setup Software
  12. Instructor's and Student's Manuals
  13. Optional Components:
    1. Syringes for Addition of Metabolites to Cuvette; (A141) 10µL, (A143) 50µL, (A145) 100µL
    2. S172 Thermistor for Measurements of Sample Temperature

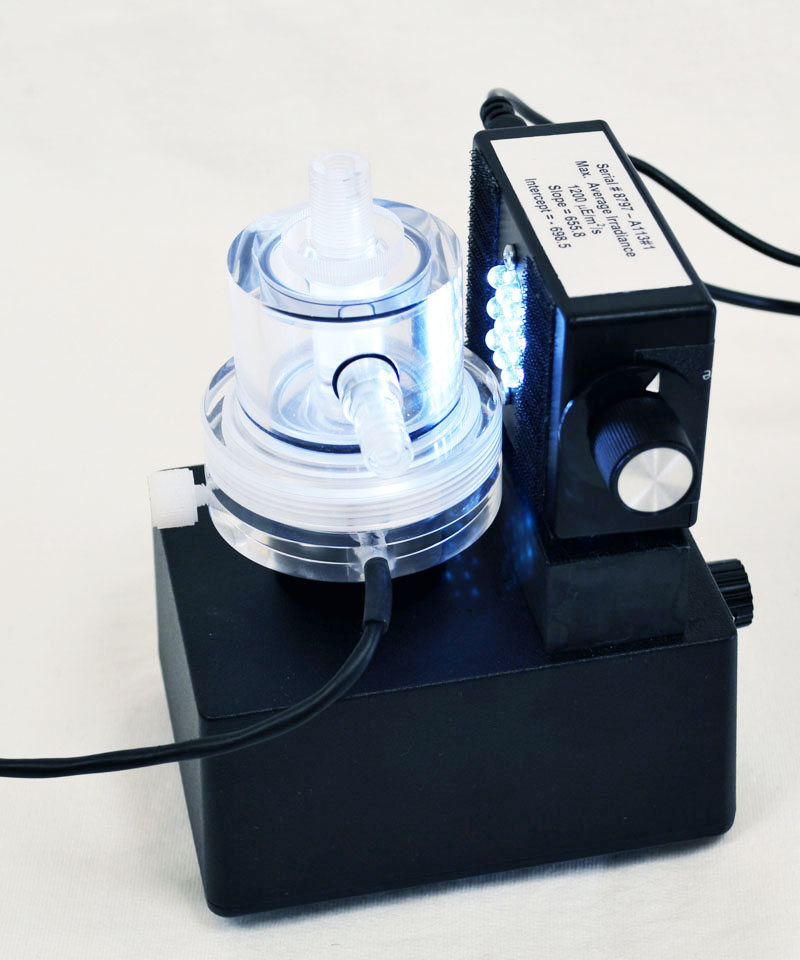

    3. A113 Calibrated LED Light Source
    4. Q-Box Rugged Case for Storage and Transport of All Components
  1. Examples of Experiments for OX1LP Packages:
  2. Measurement of Aquatic Photosynthetic O2 Evolution
  3. Effect of Inhibitors on Mitochondrial Electron Transport
  4. Analysis of Light-dependent Chloroplast Electron Transport
  5. Effects of Temperature on O2 Uptake by Aquatic Animals
  6. Kinetics of O2-consuming Enzymes

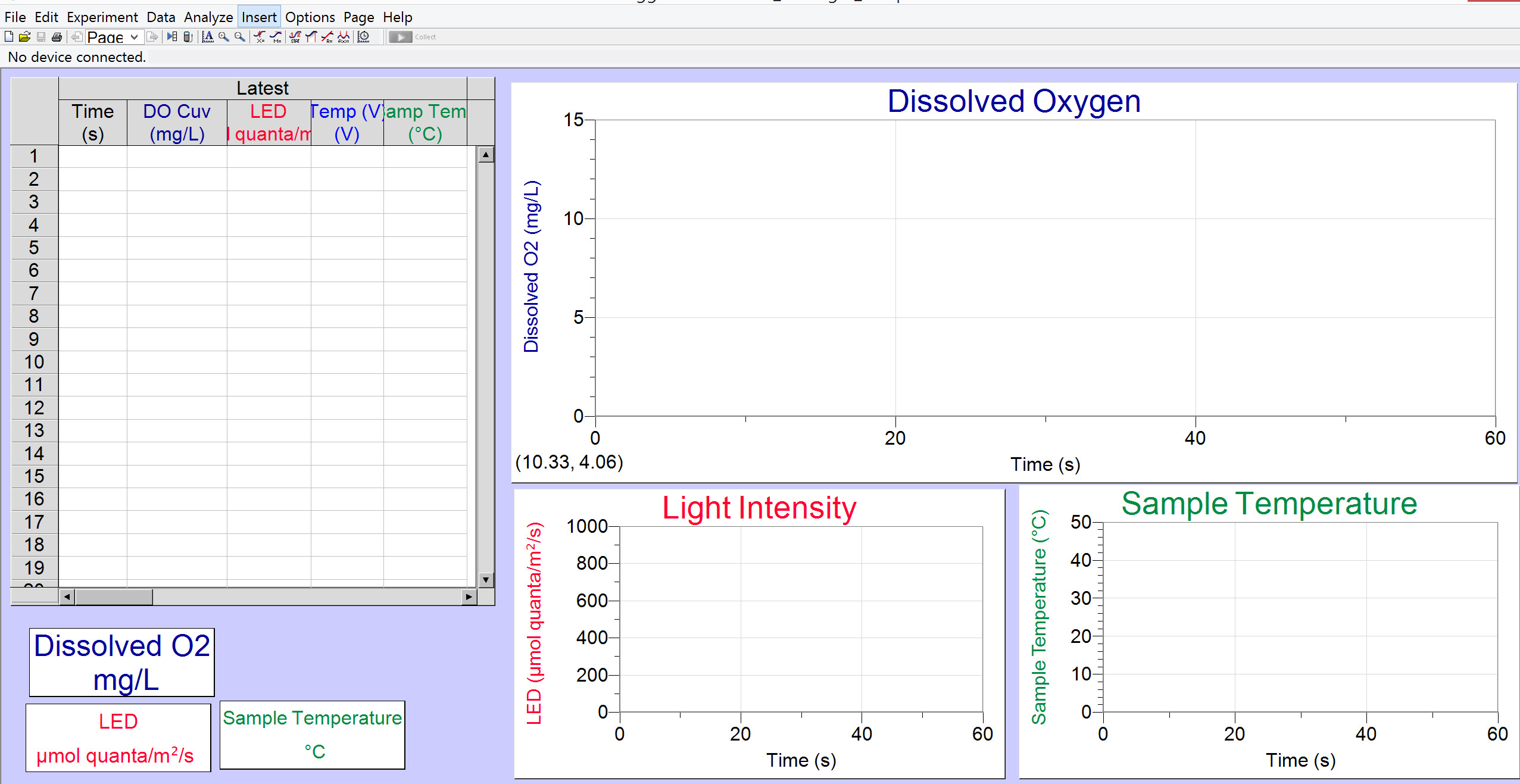

  • Q-Box OX1LP Software:


    • All Specifications are subject to change without a Prior Notice
