Packages for Teaching & Research in the Biological Sciences:


BBB1LP Breath-by-Breath Analysis Package



Qubit's BBB1LP Breath by Breath Respirometry Package is designed to measure both steady-state and dynamic changes in human metabolic rate under a variety of test conditions. VO2, VCO2, VO2max, resting metabolic rate (RMR), Respiratory Exchange Ratio (RER) and a host of other Physiological and Pulmonary Parameters may be measured on a Breath-by-Breath basis using this package.

The Breath-by-Breath Respirometry Package is easy to set up and use, and has all the accuracy of metabolic cart systems which cost many times more. All of the accessories such as face masks, holders, flow calibration kit etc. are supplied with the package. Inhaled and exhaled breath is analyzed by the rapid response O2 / CO2 Analyzer (S147) at a sampling rate of 50Hz so that the entire breath waveform is displayed graphically in real-time. The breath waveform and end-tidal O2 and CO2 are clearly displayed, even during vigorous exercise. All data are collected and displayed graphically. Data interface and software (compatible with both PC and Macintosh) are supplied with the package.

  1. Features:
  2. Rapid Response Infrared CO2 and Laser Diode O2 Analyzers in One Instrument
  3. Differential Pressure Sensor Pneumotach Spirometer
  4. Heart Rate Monitor
  1. Applications:
  2. Human Respirometry O2 and CO2 Measurements
  3. Human Metabolic Rate Studies
  4. Pulmonary Studies: Spirometry
  5. Resting and Exercise Breath-by-Breath Analysis
  6. Cardio-Pulmonary Studies
  1. Components:

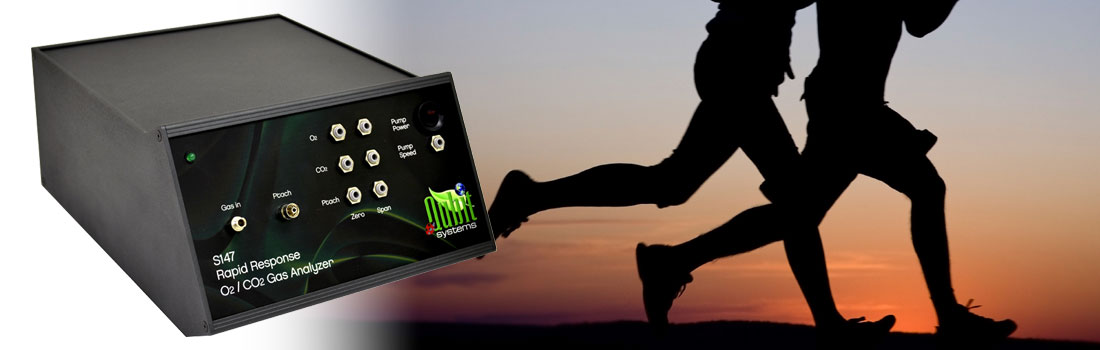

  2. S147 Rapid Response O2 / CO2 Analyzer
  3. B301 Nafion RH Equilibrator
  4. S182 Wireless Heart Rate Monitor
  5. C901 Logger Pro Software
  6. C610 × 2 LabQuest Mini Interface
  7. F500 Flowmeter
  8. A505 Face Masks (2 Large, 2 Med)
  9. A506-neo Neoprene Face Mask Holder
  10. A510 Pneumotach Spirometer
  11. A511 Pneumotach Adapter
  12. Sample Pneumotach Tubing and Connectors (Q13606)
  13. Flow Calibration Kit (Q13756)
  14. BBB1LP Accessory Kit (Tubing, Connectors, Screw Driver)
  1. Q-Box BBB1LP Software:

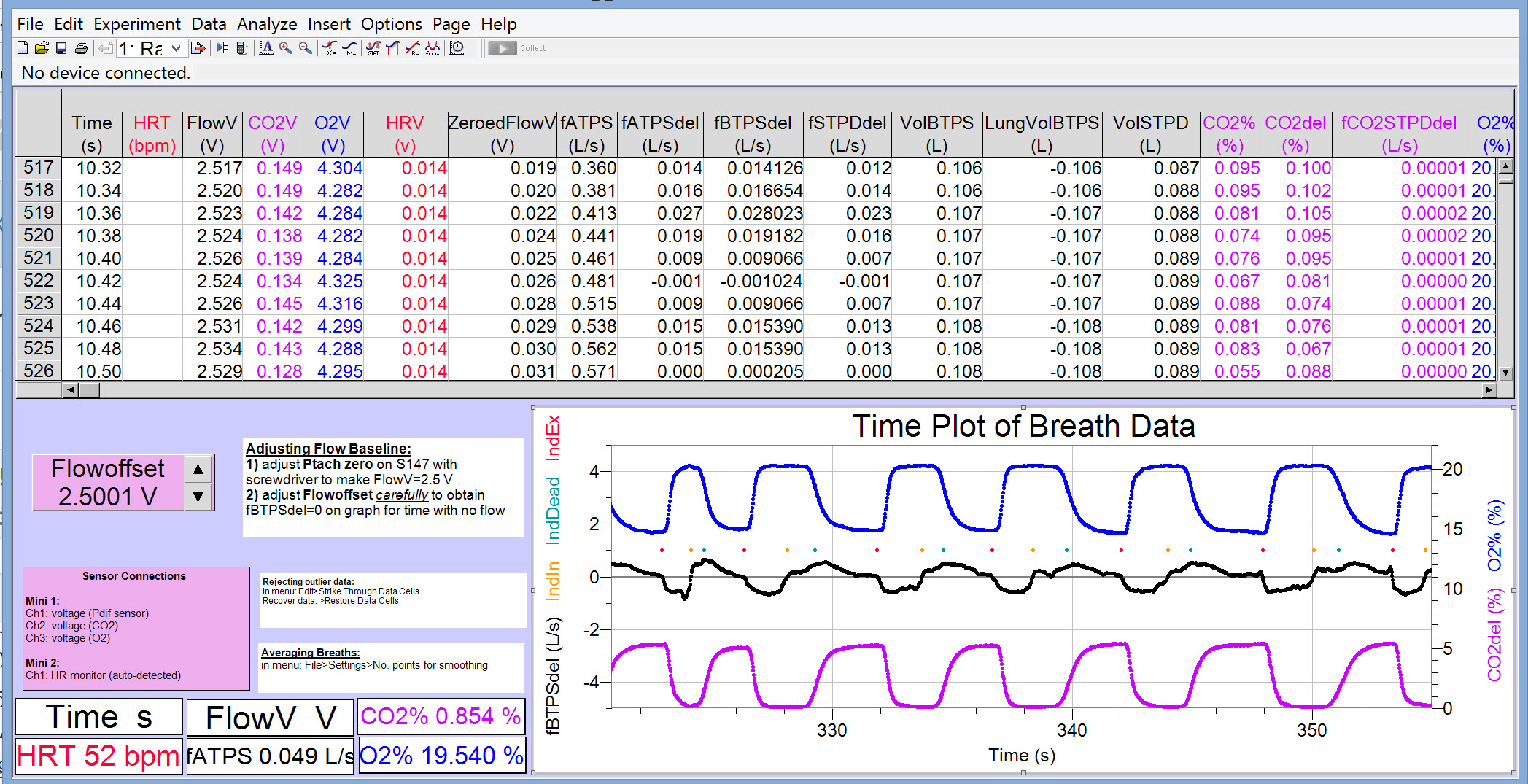

    1. Raw O2 and CO2 Data from a Breath-by-Breath Respirometry Experiment:

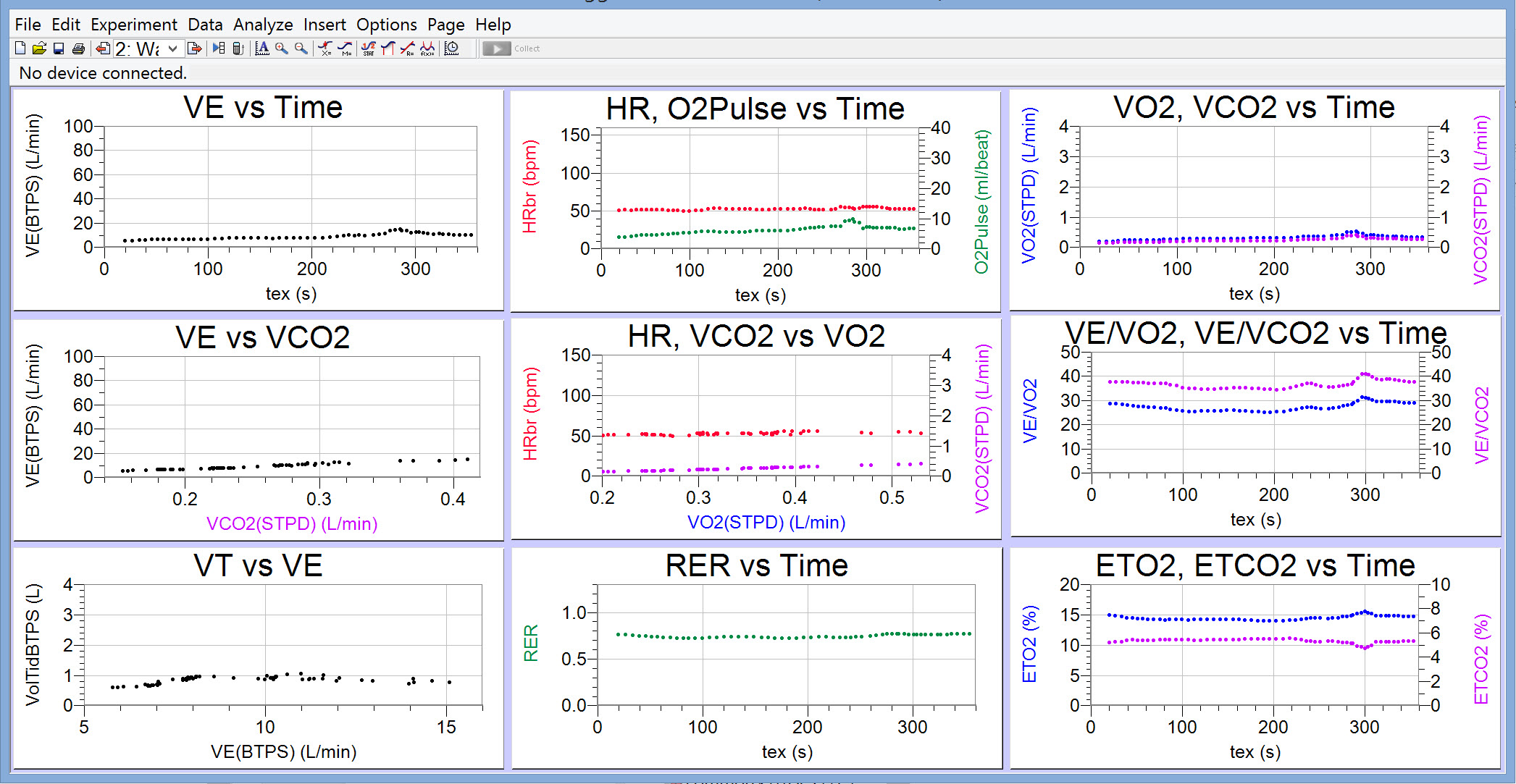

    1. Calculated Breath Parameters from a Breath-by-Breath Respirometry Experiment:

All Specifications are subject to change without a Prior Notice
